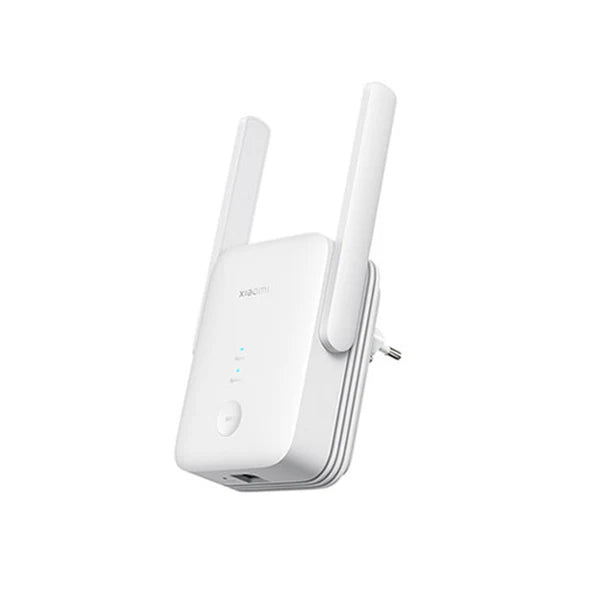

Xiaomi Wi-Fi Range Extender AX1500 EU DVB4514GL

• Dimensions: 84 × 82 × 168mm
• Product Colour: White

Hardware Configuration:

• 2.4GHz Wi-Fi: 2×2 (supports up to IEEE 802.11n protocol with a theoretical max rate of 300Mbps)
• 5GHz Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol with a theoretical maximum rate of 1201Mbps)
• Antenna: 2 high-gain antennas
• Heat Dissipation: Natural heat dissipation
• Network Port: 1 × 10/100/1000Mbps LAN port
• LED Indicator: System indicator, Signal indicator
• System Reset Button: x1
• WPS/Mesh Networking Button: x1
• Protocol Standard: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
• Wireless Specifications:
• Dual-band: 2.4GHz, 5GHz

Modulation:

• 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
• 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM Data rate: MCS0-MCS15
• 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 11ax: MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Software Specifications:

• Working Mode: Range Extender mode, Mesh mode, Access Point (AP) mode
• Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE, SSID hidden
• Management Applications: Xiaomi Home app (Android, iOS)

Working Environment:

• Working Environment Temperature: 0 to 40°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Temperature: -40°C to 70°C
• Storage Humidity: 5% to 90% RH (non-condensing)

Package Contents:

• Xiaomi Wi-Fi Range Extender AX1500 x1
• User manual x1
